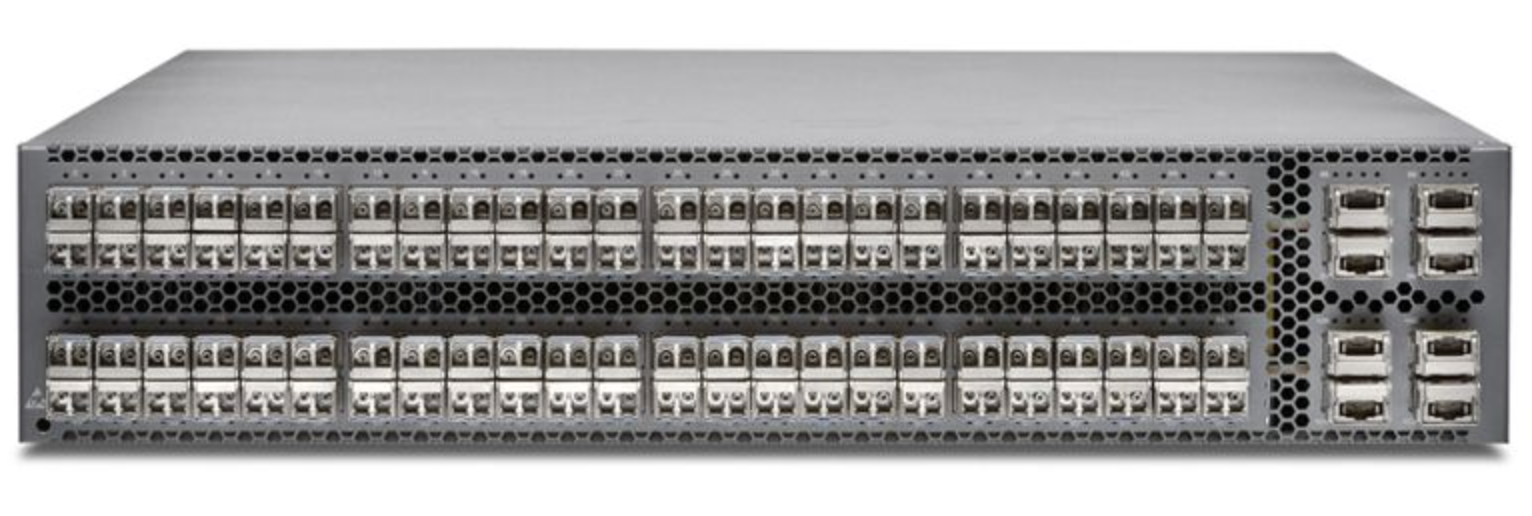

Juniper QFX5100-96S-DC-AFO 96x 10GB SFP+ 8x 40GB QSFP+ F-B Airflow (DC) Switch

The Juniper QFX5100-96S-DC-AFO is a high-performance switch for data center environments. This switch offers 96 ports of 10GB SFP+ and eight ports of 40GB QSFP+, providing flexibility for various network configurations.

With a switching capacity of up to 2.56 Tbps, this switch delivers fast and efficient performance. It has a forwarding rate of up to 1.44 Bpps, ensuring smooth data transmission with minimal latency.

One important feature is its MAC address table size, which can support up to 288,000 addresses, accommodating large-scale networks without having an effect on speed or efficiency.

The airflow direction in the QFX5100-96S-DC-AFO model is front-to-back (F-B) and designed to be used when the ports are in the cold aisle in a hot, cold data center design.

Juniper QFX5100-96S-DC-AFO: Compact 2 U high-density 10GbE aggregation switch with 96 SFP+/SFP and eight QSFP+ ports with an aggregate throughput of 2.56 Tbps or 1.44 Bpps per switch. For added flexibility, the 40GbE ports on all QFX5100 switches can be used as 4x10GbE ports using QSFP+ to SFP+ direct attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics. With splitter cables, the QFX5100-48S supports up to 72 10GbE ports, while the QFX5100-24Q and QFX5100-96S support up to 104 10GbE ports.

• Network Ports : 96x 10 Gigabit Ethernet SFP+
• Uplink Ports : 8x 40 Gigabit Ethernet QSFP+
• Management Ports : 1x USB, 2x RJ45 Console
• Product Family : QFX5100 Series
• Switch Version : Junos OS
• AirFlow Direction : Front-to-Back Airflow
• Fan Module Options : 3x QFX5100-96S-FANAFO Fan Module
• Power Supplies Included : 2x JPSU-850W-DC-AFO Power Supply Units Included
• Switching Capacity : 2.56 Tbps
• Forwarding Rate : 1.44 Bpps
• MAC Address Table Size : 288,000
• Model Number : QFX5100-96S-DC-AFO
• Part Number : QFX5100-96S-DC-AFO
• Condition : Seller refurbished

96 1/10G.8 40G.2 DC PS.FB AIRFLOW
