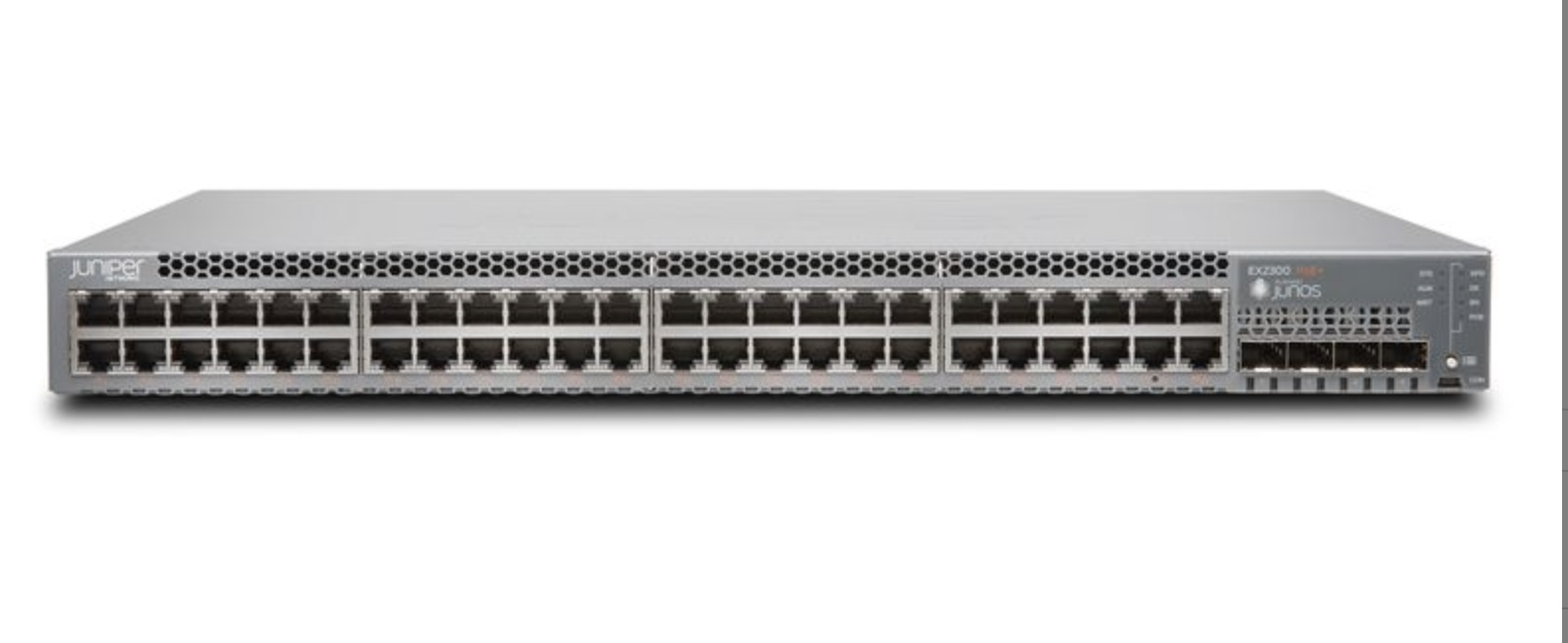

EX2300-48P-VC Juniper EX2300 Series Ethernet Switches

EX2300-48P-VC Juniper EX2300 Series Ethernet Switches

The EX2300 switch is available with 12 or 24, or 48 built-in RJ-45 network ports with full Power over Ethernet (PoE) or Power over Ethernet plus (PoE+) capability on all built-in RJ-45 network ports (access ports), or no PoE capability.  lists the EX2300 switch models.

EX2300-C switches have two uplink ports. EX2300 switches except the EX2300-C switch model and the EX2300-48MP switch model have four uplink ports. The EX2300-48MP switch model has six 10-Gigabit Ethernet uplink ports. These uplink ports support SFP and SFP+ transceivers. You can use these uplink ports as network ports or configure these ports as Virtual Chassis ports (VCPs) and use them to connect up to four switches by using SFP+ transceivers to form a Virtual Chassis. You cannot form a Virtual Chassis by using SFP transceivers. Uplink ports do not support PoE.
