CE6885-48YS8CQ Overview
Huawei CE6885-48YS8CQ switches are next-generation high-performance and high-density 10GE/25GE/50GE access switches designed for DCs.
Huawei CE6885-48YS8CQ switches have an advanced hardware structure design, and provide high-density 10GE/25GE/50GE port access and 40GE/100GE/200GE uplink ports. The switches support extensive DC features and flexible selection of the airflow direction.
Huawei CE6885-48YS8CQ switches can work with CloudEngine 16800, 16800-X, or 8800 DC core switches to build an elastic, virtualized, high-quality, and fully-connected 40GE/100GE/200GE data center network (DCN), meeting network requirements of DCs in the cloud era.
Huawei CE6885-48YS8CQ switches provide high-density 10GE/25GE/50GE access in DCs to build DCN platforms for enterprises and carriers in the cloud era. The switches can also work as core or aggregation switches on campus networks.

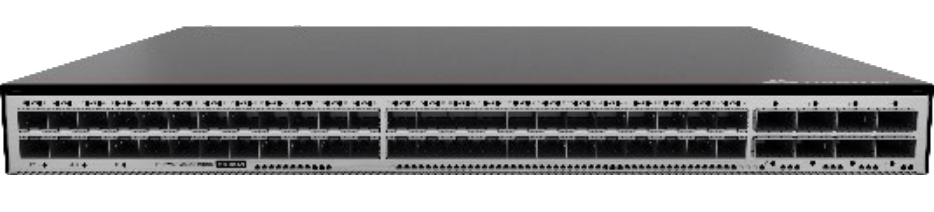

Port side of the CE6885-48YS8CQ

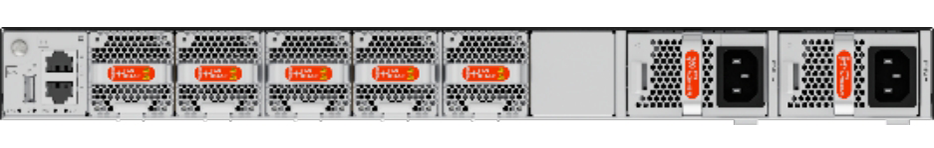

Fan and power supply side of the CE6885-48YS8CQ
Downlink: 48 x 25GE SFP28/48 x 50GE SFP56 (25GE and 50GE ports can be configured to work at 10 Gbit/s and can be used as GE ports)
Uplink: 8 x 100GE QSFP28/8 x 200GE QSFP56 (each 100GE port can be configured to work at 40 Gbit/s, and each 200GE port can be configured to work at 100 or 40 Gbit/s)
CE6885-48YS8CQ Specification
| Dimensions with packaging (H x W x D) [mm (in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.) |
| Weight without packaging [kg (lb)] | 6.36 kg (14.02 lb), excluding optical modules, power modules, and fan modules |
| Weight without packaging (full configuration) [kg (lb)] | 8.55 kg (18.85 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 10.63 kg (23.43 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 12.82 kg (28.26 lb) |
| Chassis height [U] | 1 |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| SSD Flash | 4GB SSD |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC pluggable,DC pluggable,HVDC pluggable |
| Console port | RJ45 |
| Downlink Service interface | 48 x 25GE SFP28/48 x 50GE SFP56 |
| Uplink Service interface | 8 x 100GE QSFP28/8 x 200GE QSFP56 |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | 48 x 25GE + 8 x 100GE: 147 W (100% traffic load, copper cables on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) 166 W (100% traffic load, short-distance optical modules on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] | 48 x 25GE + 8 x 100GE: 502 BTU/hr (100% traffic load, copper cables on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) 566 BTU/hr (100% traffic load, short-distance optical modules on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) |
| Static power consumption [W] | 136 W |
| Static heat dissipation [BTU/hour] | 464 BTU/hour |
| Maximum power consumption [W] | 48 x 25G + 8 x 100G: 200 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 326 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules) |
| Maximum heat dissipation [BTU/hour] | 48 x 25GE + 8 x 100GE: 682 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1112 BTU/hour (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | - 600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC - 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC - 400 W DC power module: –48 V DC to –60 V DC; +48 V DC |
| Input voltage range [V] | - 600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC - 1200 W DC power module: –38.4 V DC to –72 V DC; +40 V DC to +57 V DC - 400 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC |
| Maximum input current [A] | - 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) - 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC) - 400 W DC power module: 12 A (–48 V DC to –60 V DC); 12 A (+48 V DC) |
| Rated output power [W] | - 600 W AC&240 V DC power module: 600 W - 1200 W DC power module: 1200 W - 400 W DC power module: 400 W |
| Certification | - Compliance with safety standards - Compliance with EMC standards - Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Redundant fans | The device supports 4+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction. |
| Availability | 0.999994851 |
| MTBF [year] | 44.34 years |
| MTTR [hour] | 2 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Front-to-back airflow: Average: 52.8 dB(A); max: 58.7 dB(A) Back-to-front airflow: Average: 51.3 dB(A); max: 59.0 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: Average: 69.5 dB(A); max: 76.0 dB(A) Back-to-front airflow: Average: 70.2 dB(A); max: 75.6 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| RTU License Supported | Yes. By default, 48 x 25GE ports can only work at the rate of 25 Gbit/s, and eight 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (BOM number: 88036EUQ) to increase the rate of 25GE ports to 50 Gbit/s and the rate of 100GE ports to 200 Gbit/s. |
