N9K-C9348GC-FXP Overview
The Cisco N9K-C9348GC-FXP switch is a 1RU switch that supports 696 Gbps of bandwidth and over 517 mpps. The 48 1GBASE-T downlink ports on the 9348GC-FXP can be configured to work as 100-Mbps, 1-Gbps ports. The 4 ports of SFP28 can be configured as 1/10/25-Gbps and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports, or a combination of 1-, 10-, 25-, 40, 50-, and 100-Gbps connectivity, offering flexible migration options.
The Cisco Nexus 9348GC-FXP is ideal for big data customers that require a Gigabit Ethernet ToR switch with local switching.
N9K-C9348GC-FXP is one of the Cisco Nexus 9300-FX series switches, which offer a variety of interface options to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25- Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100- Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.

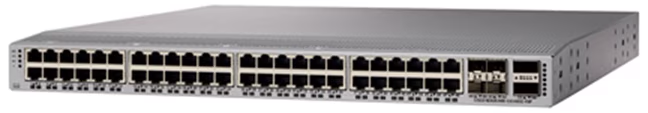

Cisco N9K-C9348GC-FXP Switch
Weight of Cisco Nexus 9348GC-FXP Switch
Cisco Nexus 9348GC-FXP without power supplies or fans | 14.2 lb (6.44 kg) |
Environmental properties of Cisco Nexus 9348GC-FXP Switch
Operating temperature | 32 to 104°F (0 to 40°C) |
Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
Humidity | 5 to 95% (noncondensing) |
Altitude | 0 to 13,123 ft (0 to 4000m) |
Power Supplies on Nexus 9348GC-FXP Switch
NXA-PAC-350W-PI | Nexus 9000 350W AC PS, Port-side Intake |
NXA-PAC-350W-PE | Nexus 9000 350W AC PS, Port-side Exhaust |
NXA-PDC-440W-PI | Nexus 9000 440W DC PS, Port-side Intake |
NXA-PDC-440W-PE | Nexus 9000 440W DC PS, Port-side Exhaust |
Licenses on Nexus 9348GC-FXP Switch
C1E1TN9300GF-3Y | ACI & NX-OS Subscription Essential package for 1G Nexus 9K Leaf, 3 Year Term |
C1E1TN9300GF-5Y | ACI & NX-OS Subscription Essential package for 1G Nexus 9K Leaf, 5 Year Term |
C1A1TN9300GF-3Y | ACI & NX-OS Subscription Advantage package for 1G Nexus 9K Leaf, 3 Year Term |
C1A1TN9300GF-5Y | ACI & NX-OS Subscription Advantage package for 1G Nexus 9K Leaf, 5 Year Term |
ACI-ES-GF | ACI Essential SW license for a 1G Nexus 9K Leaf |
ACI-AD-GF | ACI Advantage SW license for a 1G Nexus 9K Leaf |
NXOS-ES-GF | NX-OS Essential SW license for a 1G Nexus 9K Leaf |
NXOS-AD-GF | NX-OS Advantage SW license for a 1G Nexus 9K Leaf |
N9K-C9348GC-FXP Specification
| Ports | 48 x 1-GBASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports |
| Downlink supported speeds | 100-Mbps and 1-Gbps speeds |
| CPU | 4 cores |
| System memory | 24 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 350W AC, 440W DC |
| Typical power (AC/DC)* | 178W |
| Maximum power (AC/DC)* | 287W |
| Input voltage (AC) | 100 to 240V |
| Input voltage | 90 to 305V |
| (High-Voltage AC [HVAC]) | |
| Input voltage (DC) | -36V to -72V |
| Input voltage | 192 to 400V |
| (High-Voltage DC [HVDC]) | |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 3 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions | 1.72 x 17.3 x 19.7 in. |
| (H x W x D) | (4.4 x 43.9 x 49.9 cm) |
| Acoustics | 67.5 dBA at 50% fan speed, 73.2 dBA at 70% fan speed, and 81.6 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 257,860 hours |
| Minimum ACI image | ACI-N9KDK9-13.0 |
| Minimum NX-OS image | NXOS-703I7.1 |
