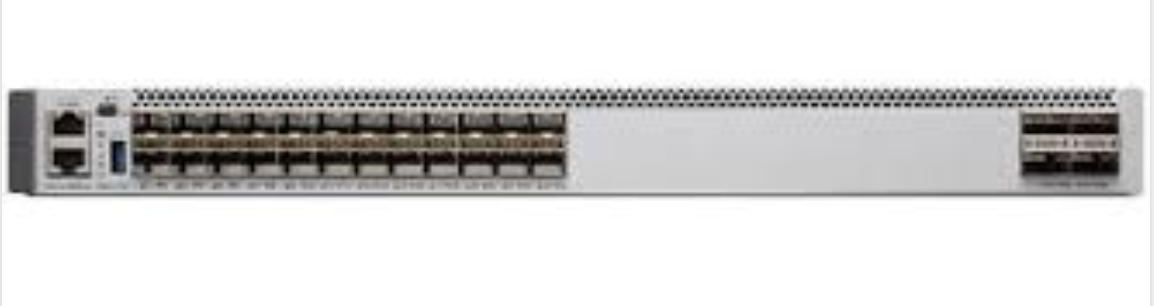

C9500-24Y4C-E - Cisco Switch Catalyst 9500
C9500-24Y4C-EC9500-24Y4C-E - Cisco Switch Catalyst 9500
C9500-24Y4C-E Overview
C9500-24Y4C-E Cisco Catalyst 9500 24 x 1 /10 /25G and 4-port 40/100G, Essential
The Cisco C9500-24Y4C-E is an advanced enterprise-level switch designed to meet the demanding needs of modern network environments. Engineered with cutting-edge technology, the Cisco C9500-24Y4C-E offers superior performance and robust security features, ensuring seamless and efficient data transfer across your network. Integrated with versatile functionality, this formidable switch from Cisco stands out for its ability to handle high traffic volumes with enhanced stability, making it a reliable choice for businesses looking to optimize their network infrastructure. Users benefit from its feature-rich design and manageable interface, allowing them to deploy network solutions with high efficiency and minimal downtime. For organizations focused on growth and efficiency, the Cisco C9500-24Y4C-E is an excellent investment, providing the backbone for scalable and robust network architecture. With its consistent performance and comprehensive management capabilities, this Cisco switch is a testament to the quality and reliability inherent in the 9500 series.
Switch Model | Description |
|---|---|
Cisco Catalyst 9500 Series Switches | |
C9500-12Q | 12x40 Gigabit Ethernet QSFP+ ports and 2 power supply slots |
C9500-24Q | 24x40 Gigabit Ethernet QSFP+ ports and 2 power supply slots |
C9500-16X | 16x10 Gigabit Ethernet SFP/SFP+ ports and 2 power supply slots; supports optional network modules on uplinks ports — 8x10 Gigabit Ethernet(SFP/SFP+) and 2x40 Gigabit Ethernet(QSFP+) |
C9500-40X | 40x10 Gigabit Ethernet SFP/SFP+ ports and 2 power supply slots; supports optional network modules on uplink ports — 8x10 Gigabit Ethernet(SFP/SFP+) and 2x40 Gigabit Ethernet(QSFP+) |
Cisco Catalyst 9500 Series High Performance Switches | |
C9500-32C | 32x40G/100G QSFP28 ports and 2 power supply slots |
C9500-32QC | 32x40G or 16x100G QSFP28 ports and 2 power supply slots |
C9500-24Y4C | 24x1G/10G/25G SFP28 ports and 2 power supply slots; 4x40G/100G QSFP28 fixed uplink ports |
C9500-48Y4C | 48x1G/10G/25G SFP28 ports and 2 power supply slots; 4x40G/100G QSFP28 fixed uplink ports |
Switch Model | Description |
|---|---|
C9500-16X-2Q | 16x10 Gigabit Ethernet SFP/SFP+ ports and 2x40 Gigabit Ethernet (QSFP+) network module on uplink ports; and two power supply slots |
C9500-40X-2Q | 40 10-Gigabit Ethernet SFP/SFP+ ports and 2x40 Gigabit Ethernet (QSFP+) network module on uplink ports; and two power supply slots |
C9500-24X | 16x10 Gigabit Ethernet SFP/SFP+ ports and 8x10 Gigabit Ethernet (SFP/SFP+) network module on uplink ports; and two power supply slots |
C9500-48X | 40x10 Gigabit Ethernet SFP/SFP+ ports and 8x10 Gigabit Ethernet (SFP/SFP+) network module on uplink ports; and two power supply slots |
C9500-24Y4C-E Specification
C9500-24Y4C-E Specification
C9500-24Y4C-E Specification | |
Performance specifications | |
Switching capacity | Up to 2 Tbps |
Forwarding rate | Up to 1 Bpps |
Total number of MAC addresses | Up to 82,000 |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 212,000 indirect + direct Up to 90,000 host/ARP |
Total number of IPv6 routes | Up to 212,000 indirect + direct Up to 90,000 host |
QoS ACL scale | Up to 16000 |
Security ACL scale | Up to 27000 |
FNF entries | Up to 98,000 |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Jumbo frame | 9216 bytes |
Power supply specifications | |
Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
Dimensions, physical specifications, weight, and MTBF | |
Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
Rack units (RU) | 1 RU |
Input voltage | 90 to 264 VAC |
Operating temperature | 32° to 104°F (0° to 40°C) |
Storage temperature | -4° to 149°F (-20° to 65°C) |
Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
Altitude | Operation up to 13,000 feet at 40°C |
MTBF (hours) | 336,780 |
