C9500-24Y4C-A Cisco Switch Catalyst 9500
C9500-24Y4C-AC9500-24Y4C-A Cisco Switch Catalyst 9500

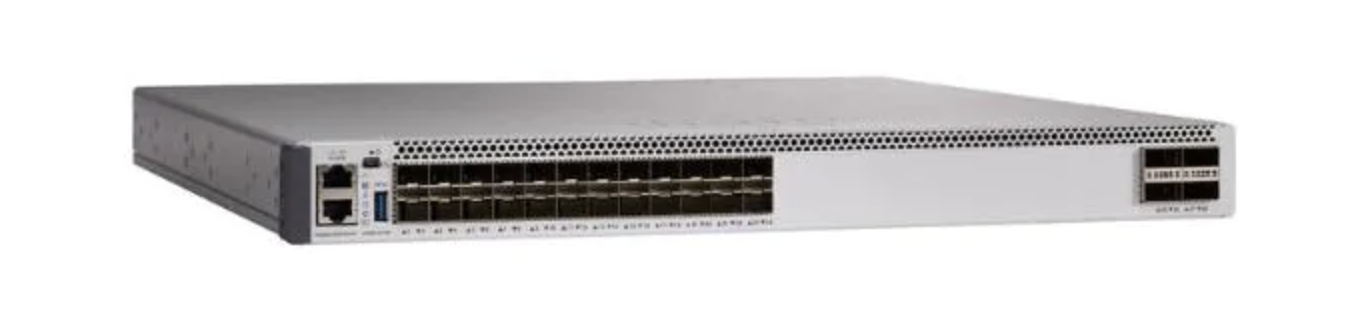

C9500-24Y4C-A Overview
C9500-24Y4C-A Cisco Switch Catalyst 9500 Cisco Catalyst 9500 24 x 1 /10 /25G and 4-port 40/100G, Advantage
The Cisco C9500-24Y4C-A is a high-performance enterprise-grade switch designed to support the robust demands of modern network infrastructures. This switch is part of the Cisco Catalyst 9500 Series, known for its advanced features and superior capacity. The C9500-24Y4C-A model is engineered to deliver exceptional network performance, security, and efficiency, making it a key component in high-density and mission-critical environments. With support for 10/25/40/100 Gigabit Ethernet, it offers flexible deployment options to match the dynamic needs of enterprise environments. The C9500-24Y4C-A is built to integrate seamlessly with other Cisco solutions, providing a coherent and reliable network experience. Its energy-efficient design also ensures cost-effective operation without compromising on power or performance. Whether deployed in data centers or enterprise networks, this Cisco switch is optimized to handle the most demanding tasks effortlessly.
Switch Model | Description |
|---|---|
Cisco Catalyst 9500 Series Switches | |
C9500-12Q | 12x40 Gigabit Ethernet QSFP+ ports and 2 power supply slots |
C9500-24Q | 24x40 Gigabit Ethernet QSFP+ ports and 2 power supply slots |
C9500-16X | 16x10 Gigabit Ethernet SFP/SFP+ ports and 2 power supply slots; supports optional network modules on uplinks ports — 8x10 Gigabit Ethernet(SFP/SFP+) and 2x40 Gigabit Ethernet(QSFP+) |
C9500-40X | 40x10 Gigabit Ethernet SFP/SFP+ ports and 2 power supply slots; supports optional network modules on uplink ports — 8x10 Gigabit Ethernet(SFP/SFP+) and 2x40 Gigabit Ethernet(QSFP+) |
Cisco Catalyst 9500 Series High Performance Switches | |
C9500-32C | 32x40G/100G QSFP28 ports and 2 power supply slots |
C9500-32QC | 32x40G or 16x100G QSFP28 ports and 2 power supply slots |
C9500-24Y4C | 24x1G/10G/25G SFP28 ports and 2 power supply slots; 4x40G/100G QSFP28 fixed uplink ports |
C9500-48Y4C | 48x1G/10G/25G SFP28 ports and 2 power supply slots; 4x40G/100G QSFP28 fixed uplink ports |
Switch Model | Description |
|---|---|
C9500-16X-2Q | 16x10 Gigabit Ethernet SFP/SFP+ ports and 2x40 Gigabit Ethernet (QSFP+) network module on uplink ports; and two power supply slots |
C9500-40X-2Q | 40 10-Gigabit Ethernet SFP/SFP+ ports and 2x40 Gigabit Ethernet (QSFP+) network module on uplink ports; and two power supply slots |
C9500-24X | 16x10 Gigabit Ethernet SFP/SFP+ ports and 8x10 Gigabit Ethernet (SFP/SFP+) network module on uplink ports; and two power supply slots |
C9500-48X | 40x10 Gigabit Ethernet SFP/SFP+ ports and 8x10 Gigabit Ethernet (SFP/SFP+) network module on uplink ports; and two power supply slots |
C9500-24Y4C-A Specification
C9500-24Y4C-A Specification
C9500-24Y4C-A Specification | |
Performance specifications | |
Switching capacity | Up to 2.0 Tbps |
Forwarding rate | Up to 1 Bpps |
Total number of MAC addresses | Up to 82,000 |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 212,000 indirect + direct Up to 90,000 host/ARP |
Total number of IPv6 routes | Up to 212,000 indirect + direct Up to 90,000 host |
QoS ACL scale | Up to 16000 |
Security ACL scale | Up to 27000 |
FNF entries | Up to 98,000 |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Jumbo frame | 9216 bytes |
Power supply specifications | |
Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
Dimensions, physical specifications, weight, and MTBF | |
Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
Rack units (RU) | 1 RU |
Input voltage | 90 to 264 VAC |
Operating temperature | 32° to 104°F (0° to 40°C) |
Storage temperature | -4° to 149°F (-20° to 65°C) |
Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
Altitude | Operation up to 13,000 feet at 40°C |
MTBF (hours) | 336,780 |
