C9200L-24PXG-4X-A Overview
As one of the ENERGY STAR® certified models of Cisco Catalyst 9200 Series Switches, C9200L-24PXG-4X-A provides stackable 8xMultigigabit Ethernet PoE+ ports and 16x1G PoE+ ports; 4x10G SFP+ fixed uplink ports; 2 power supply slots; 2 fixed fans; supports StackWise-80.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE® and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

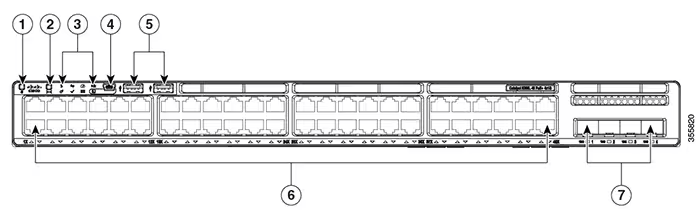

Front Panel of the C9200L-24PXG-4X-A Switch
1 | Blue Beacon (UID button) | 5 | USB Type A storage ports |
2 | Mode button | 6 | 10/100/1000 PoE+ ports |
3 | Status LEDs | 7 | Fixed uplink ports |
4 | USB mini-Type B (console) port |
The fixed uplink ports on C9200L switch models support the following types of transceiver modules.
4x1G ports that support 1G SFP modules.
4x10G ports that support either 1G SFP or 10G SFP+ modules.
2x25G ports that support SFP28 modules.

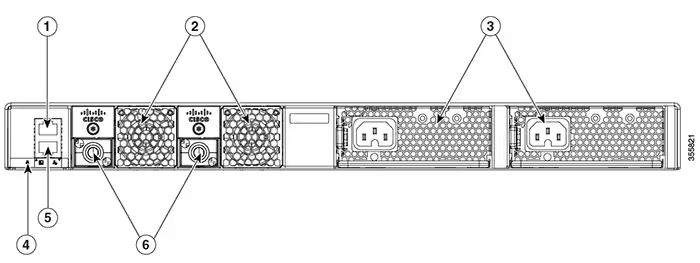

Rear Panel of the C9200L-24PXG-4X-A Switch
1 | RJ-45 console port | 4 | Blue Beacon LED |
2 | Fixed fan modules on C9200L switches | 5 | MGMT (RJ-45 10/100/1000 management port) |
3 | Power supply module slots | 6 | StackWise-80 port connectors |
C9200L-24PXG-4X-A Specification
| Switch model | C9200L-24PXG-4X | |
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | |
| Uplink configuration | 4x 1/10G fixed uplinks | |
| Default primary power supply | PWR-C5-600WAC | |
| Fans | Fixed redundant | |
| Primary power supply | PWR-C5-600WAC | PWR-C5-715WDC= |
| Available PoE power with single primary power supply only1 | 370W | 485W |
| Optional secondary power supply | PWR-C5-600WAC | PWR-C5-715WDC= |
| Available PoE power with additional secondary power supply1 | 740W | 740W |
| Virtual Networks | 1 | |
| Stacking bandwidth | 80 Gbps | |
| Total number of MAC addresses | 16,000 | |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) | |
| IPv4 routing entries | 3,000 | |
| IPv6 routing entries | 1,500 | |
| Multicast routing scale | 1,000 | |
| QoS scale entries | 1,000 | |
| ACL scale entries | 1,500 | |
| Packet buffer per SKU | 6 MB buffers for 24- or 48- port Gigabit Ethernet models, 12 MB buffers for 24 or 48 port multigigabit models | |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48- port Gigabit Ethernet models, 32,000 flows on 24 or 48 port multigigabit models | |
| DRAM | 2 GB | |
| Flash | 4 GB | |
| VLAN IDs | 4096 | |
| PVST Instances | 128 | |
| STP Virtual Ports | 13,000 | |
| (Port *VLANs) for PVST | ||
| STP Virtual Ports | 13,000 | |
| (Port *VLANs) for MST | ||
| Total Switched Virtual Interfaces (SVIs) | 512 | |
| Jumbo frames | 9198 bytes | |
| Wireless bandwidth per switch | N/A | |
| IP SGT binding scale | 10K | |
| Number of IPv4 bindings | 10K | |
| Number of SGT/DGT policies | 2K | |
| Number of SXP Sessions | 200 | |
| Switching capacity | 272 Gbps | |
| Switch capacity with Stacking | 352 Gbps | |
| Forwarding rate | 214.28 Mpps | |
| Forwarding rate with Stacking | 262 Mpps | |
| Chassis Dimensions | Inches | Centimeters |
| 1.73 x 17.5 x 13.8 | 4.4 x 44.5 x 35.0 | |
| Chassis + FEP + Fan Dimensions (HxWxD) | Inches | Centimeters |
| 1.73 x 17.5 x 15.4 | 4.4 x 44.5 x 39.1 | |
| Weights | Pounds | Kilograms |
| 12 | 5.44 | |
| Mean time between failures (hours) | 379,410 | |
