AIR-CT7510-2K-K9

The Cisco Flex 7500 Series Cloud Controllers (Figure 1) can manage wireless access points in up to 6000 branch locations. This controller allows IT managers to configure, manage, and troubleshoot up to 6000 access points and 64,000 clients from the data center. The Cisco Flex 7500 Series Cloud Controller supports secure guest access, rogue detection for Payment Card Industry (PCI) compliance, and in-branch (locally switched) Wi-Fi voice and video.

Features

The Cisco Flex 7500 Series Cloud Controller provides centralized control, management, and troubleshooting. It supports the Cisco FlexConnect^™ solution for a lean branch network that uses access points connected to controllers in the data center over a wide area network. Data traffic from the access points is switched locally at the branch, so that in the rare event of a WAN failure at the branch, wireless clients remain connected on the network with access to local resources within the branch.

Cisco Flex 7500 Series Cloud Controllers automate wireless configuration and management functions and allow network managers to have the visibility and control needed to cost-effectively manage, secure, and optimize the performance of their branch networks. When traffic is directed to the controller in FlexConnect central switched mode, the Cisco Flex 7500 Series supports Cisco^® Application Visibility and Control (AVC). Cisco AVC includes the NBAR-2 engine, Cisco’s deep packet inspection (DPI) capability that classifies applications, applies quality of service (QoS) to either drop or mark the traffic, and prioritizes business-critical applications in the network.

Cisco AVC uses NetFlow Version 9 to export the flows to Cisco Prime^™ Infrastructure or a third-party NetFlow Collector. The Cisco Flex 7500 Series in central switched mode also supports Bonjour Services Directory to enable Bonjour Services to be advertised and utilized in a separate Layer 3 network. Wireless Policy engine is a wireless profiler and policy feature on the Cisco Flex 7500 Series wireless controller that enables profiling of wireless devices and enforcement of policies such as VLAN assignment, QoS, ACL, and time-of-day-based access. As a component of the Cisco Unified Wireless Network, this controller provides real-time communications between Cisco Aironet^® access points, Cisco Prime Infrastructure, and the Cisco Mobility Services Engine (MSE), and is interoperable with other Cisco controllers. With integrated Cisco CleanAir^® technology, the Cisco Flex 7500 Series provides the industry’s only self-healing and self-optimizing wireless network for branches.

Software Licensing Flexibility

The Cisco Flex 7500 Series Cloud Controllers provide right-to-use (with EULA agreement) license enablement for faster time to deployment, with flexibility to add additional access points (up to 6000 access points) as business needs grow.

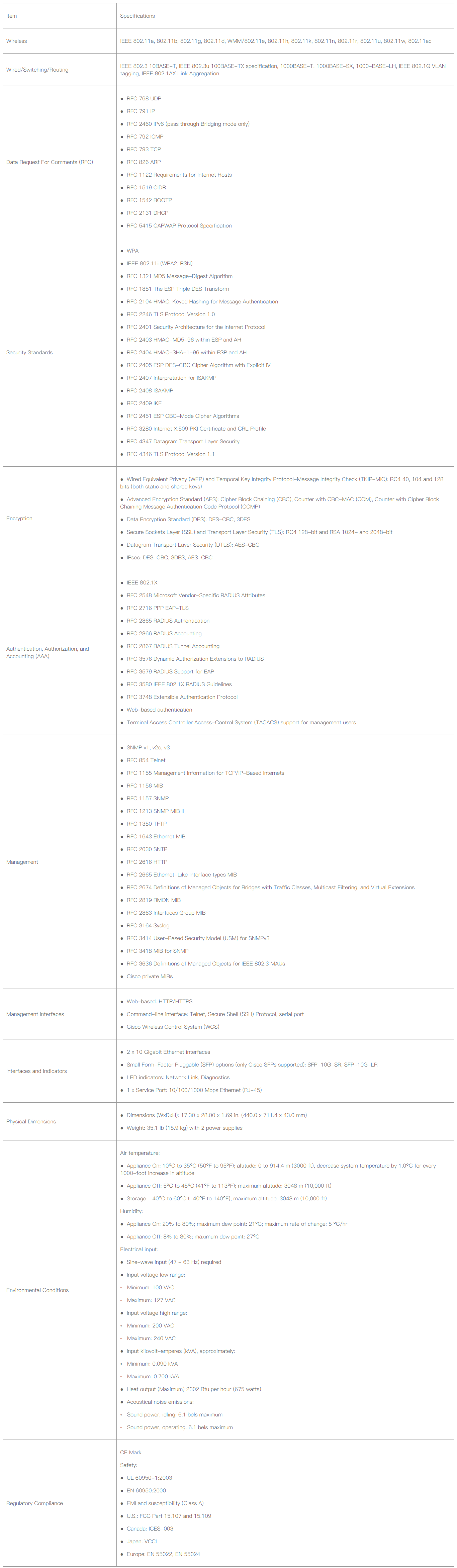

Table 1 lists the features of Cisco Flex 7500 Series Cloud Controllers.
